Pros and Cons of Insulating a Garage: What U.S. Homeowners Should Know Before Starting

Insulating a garage can make the space more comfortable, quieter, and more useful. It can help if you use the garage as a workshop, home gym, laundry area, hobby room, storage space, or entry zone from the house.

However, garage insulation is not always a simple yes-or-no decision. The value depends on how the garage is built, how it connects to the house, how you use it, and whether it is heated or cooled.

An attached garage has different priorities than a detached garage. A garage with a bedroom above it has different needs than a detached storage garage. A heated workshop needs a different plan than an unheated parking space.

The biggest mistake is thinking insulation alone will make a garage warm in winter or cool in summer. Insulation slows heat transfer. It does not create heat, cooling, ventilation, air sealing, or moisture control by itself.

This guide explains the real pros and cons of insulating a garage, what to check before starting, which areas matter most, and when insulation is worth the cost.

What Does Garage Insulation Actually Do?

Garage insulation slows the movement of heat through walls, ceilings, doors, and other building assemblies. It helps reduce heat loss in cold weather and heat gain in hot weather.

Insulation can help with:

• Temperature stability
• Comfort
• Noise reduction
• Energy efficiency in some situations
• Protection for stored items
• Better performance in a heated or cooled garage
• Comfort in rooms above or beside an attached garage

But insulation does not solve every garage problem. It does not automatically:

• Heat the garage
• Cool the garage
• Stop air leaks
• Stop carbon monoxide movement
• Fix moisture problems
• Replace fire-separation materials
• Eliminate pests
• Make a garage safe for living space
• Make a garage door airtight

For best results, insulation should work together with air sealing, moisture control, garage door weatherstripping, ventilation, safe mechanical design, and local code compliance.

Attached Garage vs Detached Garage

Before insulating, identify the type of garage.

Attached Garage

An attached garage shares at least one wall, ceiling, floor, or door connection with the house. This type needs special attention because air, odors, and contaminants can move from the garage into the living space through gaps and penetrations.

Attached garages often need attention to:

• Air sealing
• Fire separation
• Indoor air quality
• Shared wall insulation
• Ceiling or floor insulation below living space
• Door weatherstripping between garage and house
• Penetrations around pipes, ducts, and wiring
• Carbon monoxide safety

If there is a bedroom, bonus room, or living space above the garage, insulation and air sealing become more important.

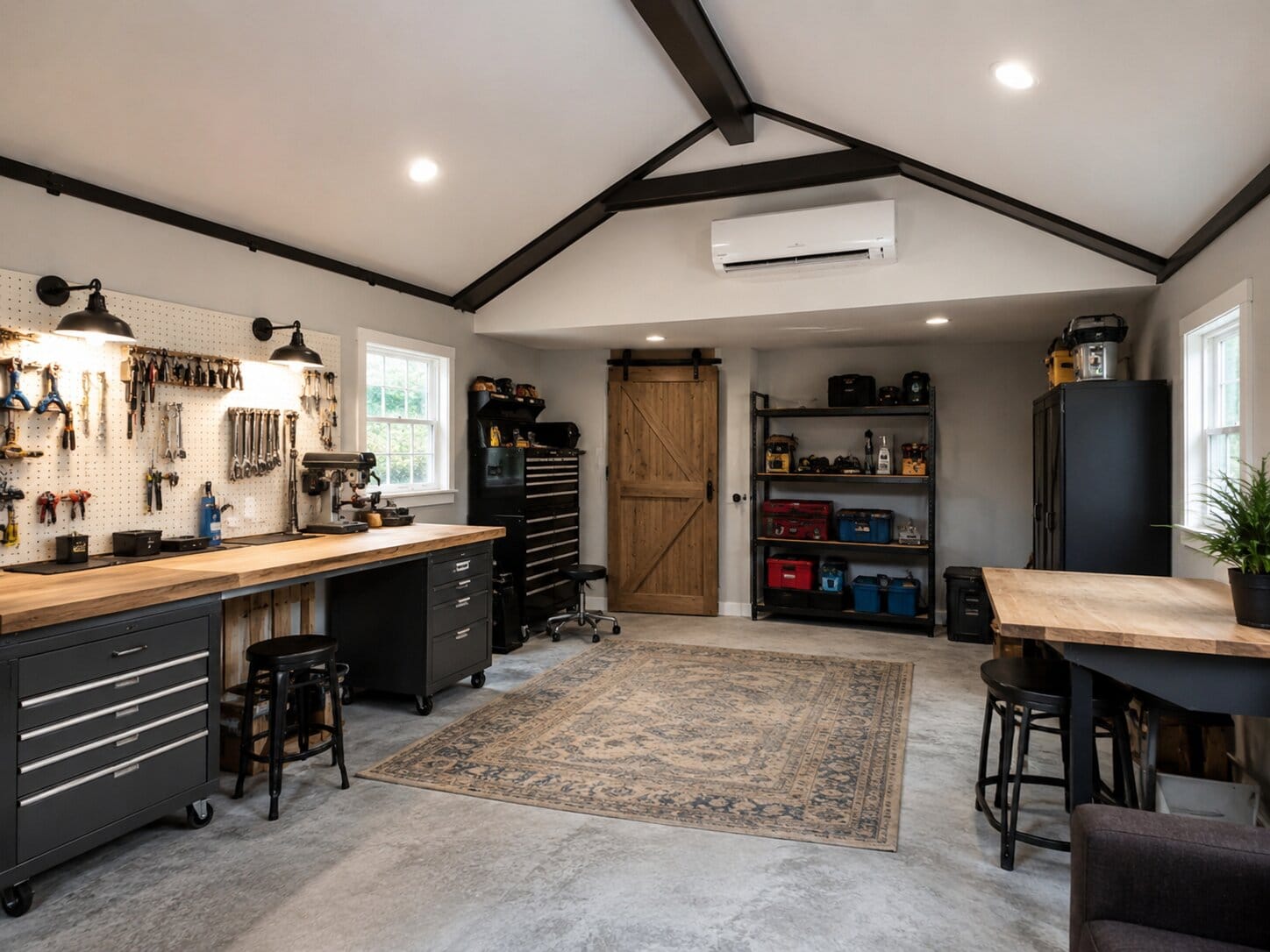

Detached Garage

A detached garage stands separate from the home. It does not share a direct wall or ceiling with the living space.

Detached garages often need insulation when they are used as:

• Workshops
• Hobby spaces
• Home gyms
• Studios
• Storage for temperature-sensitive items
• Heated or cooled workspaces

If a detached garage is only used for parking and basic storage, full insulation may not be worth the cost.

Heated, Cooled, Unheated, and Conditioned Garages

Garage use matters.

Unheated Garage

If the garage has no heat source, insulation will not make it warm. It can slow temperature swings, but it will not create heat. An unheated insulated garage may stay slightly more stable than an uninsulated one, but comfort gains may be limited.

Heated or Cooled Garage

If you use a heater, mini-split, or cooling system, insulation becomes much more useful. It helps the garage hold conditioned air longer and reduces energy waste.

Conditioned Garage

A conditioned garage is intentionally heated or cooled and treated more like part of the home’s thermal envelope. This usually requires a more complete plan, including code review, air sealing, insulation, ventilation, fire separation, and sometimes mechanical design.

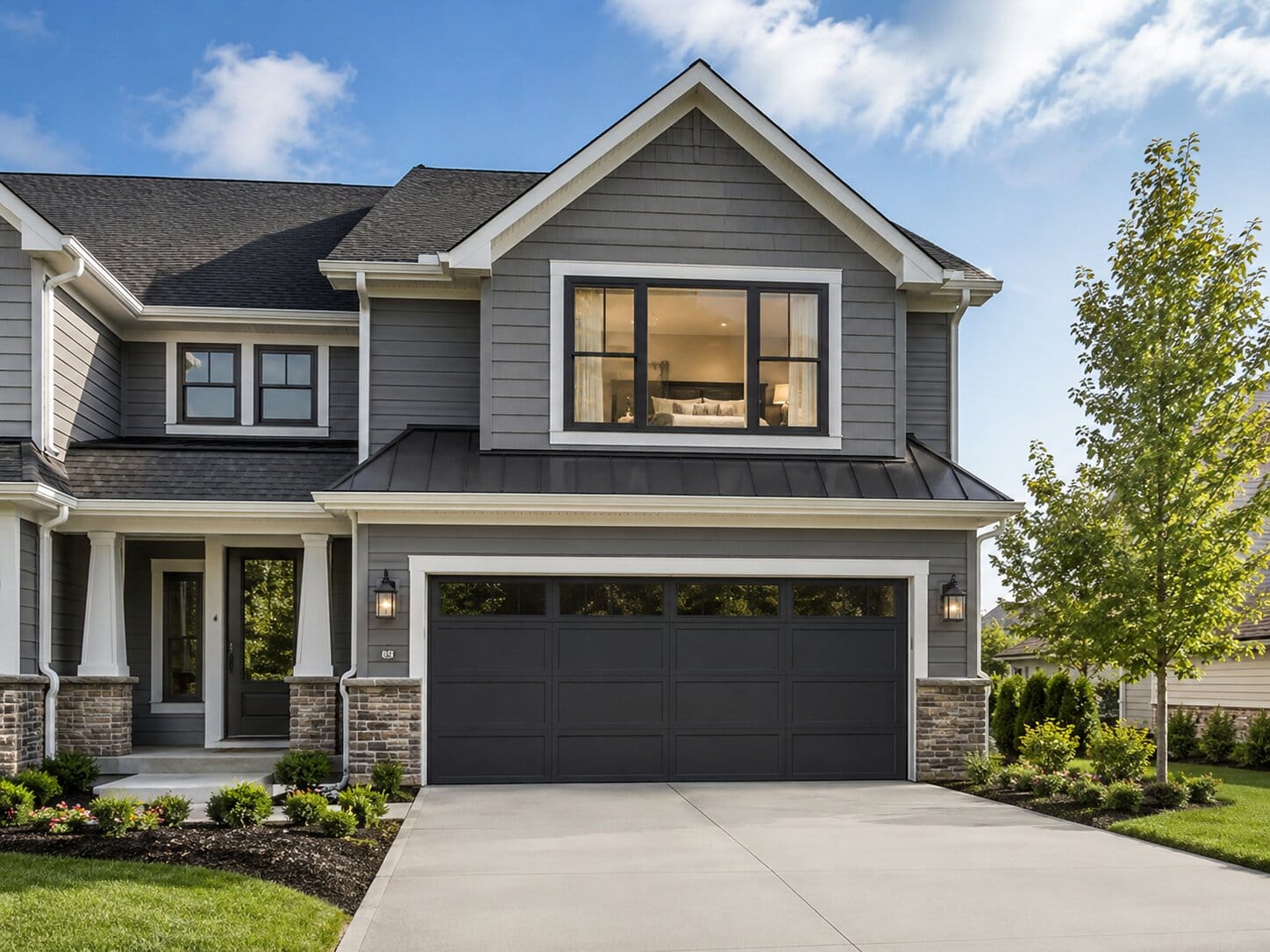

Garage With Living Space Above

This is one of the strongest cases for insulation. The floor between the garage and the room above should have a continuous air barrier and thermal barrier. DOE notes that air sealing and insulating floors over unconditioned garages can help comfort, energy performance, and indoor air quality.

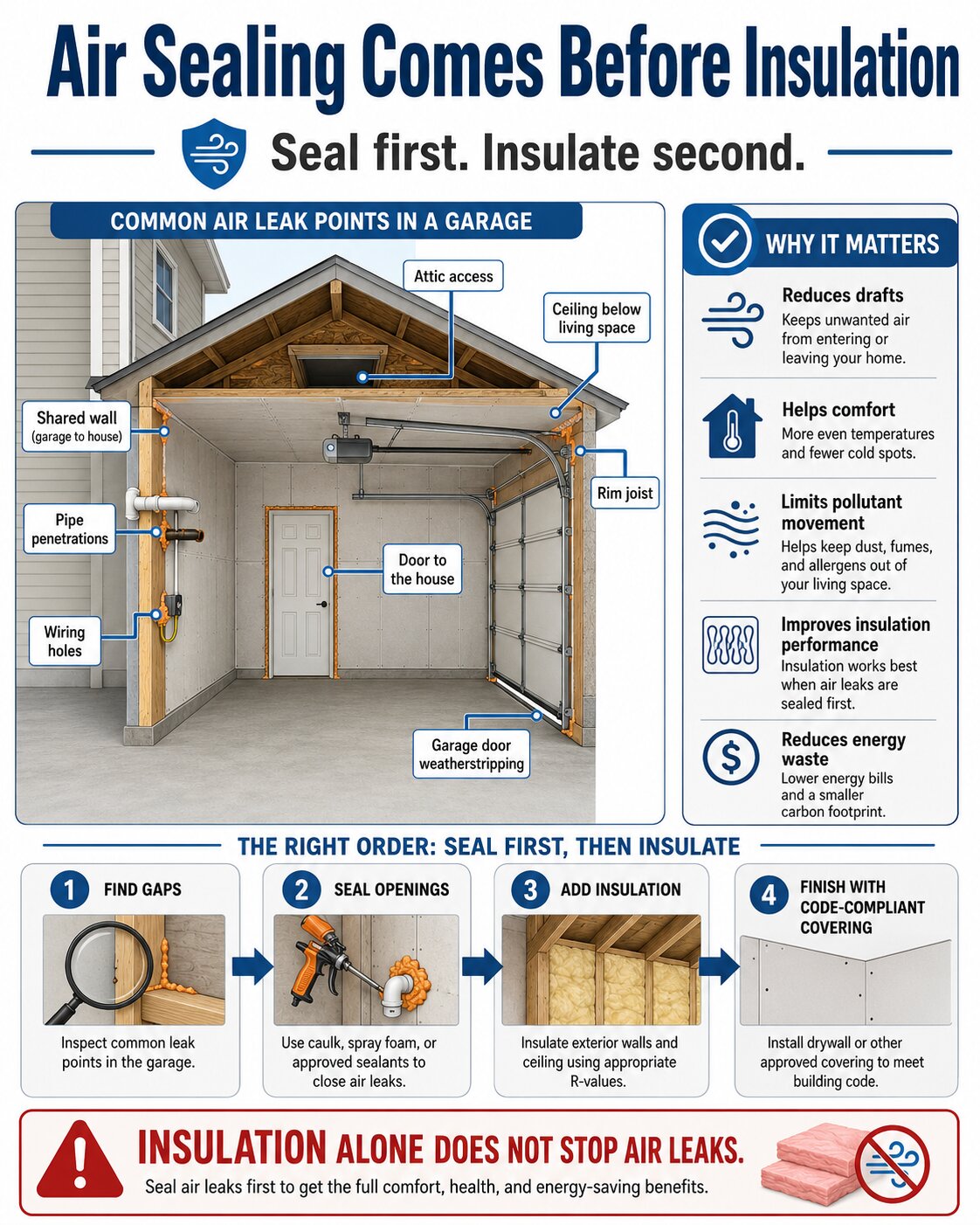

Air Sealing Comes Before Insulation

Air sealing should usually come before insulation, especially in attached garages.

Insulation slows heat transfer, but air can still leak through gaps. Those leaks can carry cold air, hot air, odors, dust, exhaust fumes, and moisture.

Important air sealing areas include:

• Shared wall between garage and house
• Ceiling below living space
• Rim joist areas
• Open joist bays
• Pipe penetrations
• Wiring holes
• Duct penetrations
• Gaps around doors
• Gaps around outlet boxes
• Cracks in drywall
• Gaps around attic access
• Wall-to-floor joints

Building America Solution Center explains that air-sealed attached garages help block leakage of carbon monoxide and other contaminants from the garage into the home.

Indoor Air Quality and Carbon Monoxide Risk

A garage can contain pollutants that should not enter the home.

Common garage pollutants include:

• Carbon monoxide from vehicle exhaust
• Gasoline fumes
• Paint fumes
• Solvent vapors
• Pesticides
• Fertilizers
• Dust
• Woodworking particles
• Engine fluids
• Battery charging gases in some cases
• Odors from trash, tools, or stored chemicals

DOE warns that a garage can be a source of pollutants, including dangerous carbon monoxide from car exhaust. DOE also advises not to leave a car engine running with the garage door closed and to store paints, solvents, and chemicals in tightly sealed containers.

This is why attached garage insulation must not focus only on R-value. Air sealing and pollutant control matter just as much.

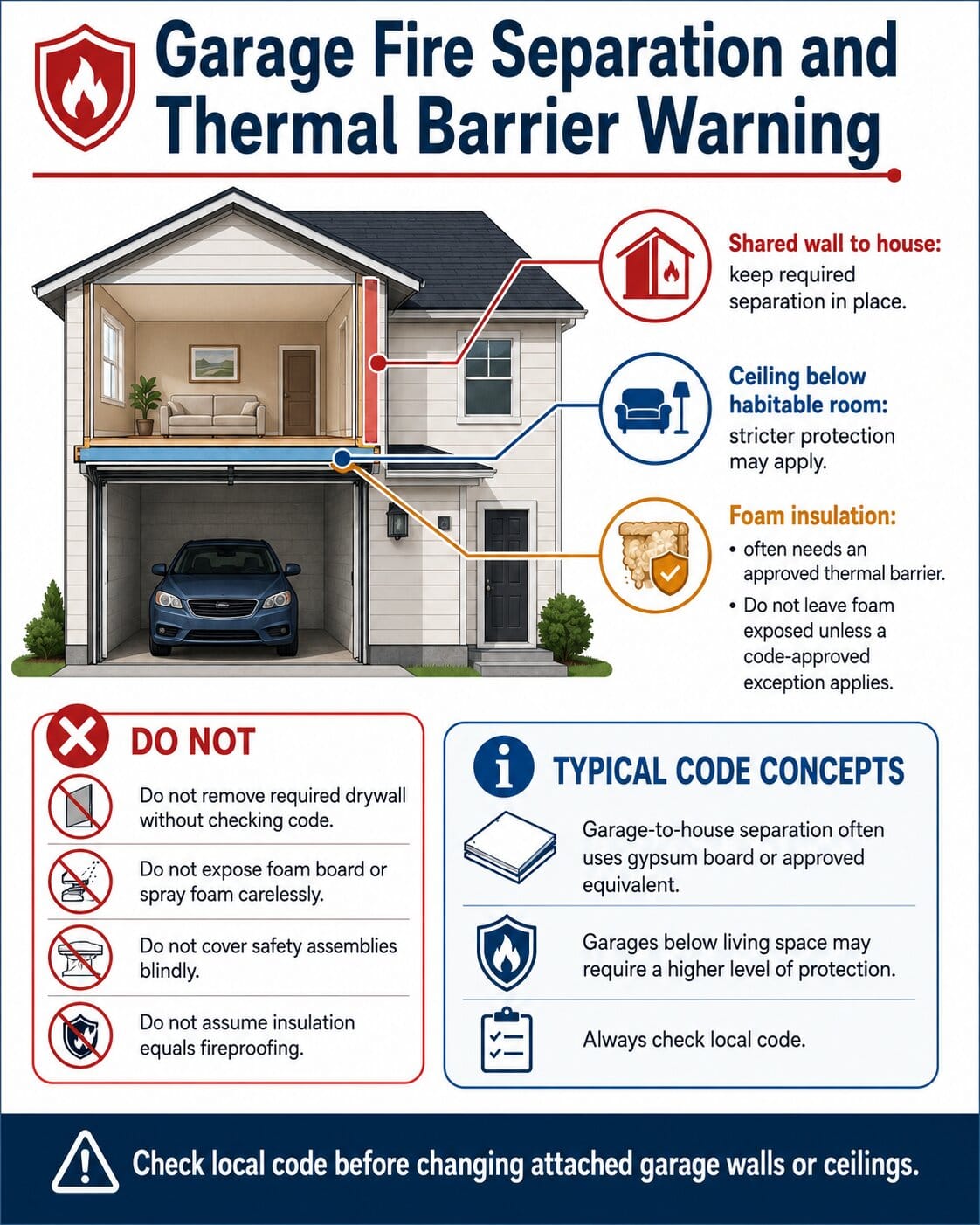

Fire Separation and Thermal Barrier Context

Attached garages often have code requirements for separation between the garage and living space. This is not the same as “fireproofing.”

IRC R302.6 lists dwelling-garage separation requirements. For separation from the residence and attics, the table includes not less than 1/2-inch gypsum board or equivalent applied to the garage side. For garages beneath habitable rooms, it lists not less than 5/8-inch Type X gypsum board or equivalent. Local jurisdictions may amend or apply these rules differently, so homeowners should check local code before changing garage walls or ceilings.

This matters because exposed insulation may not be allowed. Some foam plastic insulation also needs an approved thermal barrier unless a code-approved exception applies. IRC R316.4 states that foam plastic insulation generally must be separated from the interior of a building by an approved thermal barrier such as not less than 1/2-inch gypsum wallboard, unless otherwise allowed.

Do not remove drywall, expose foam, or cover required separation materials without checking local code.

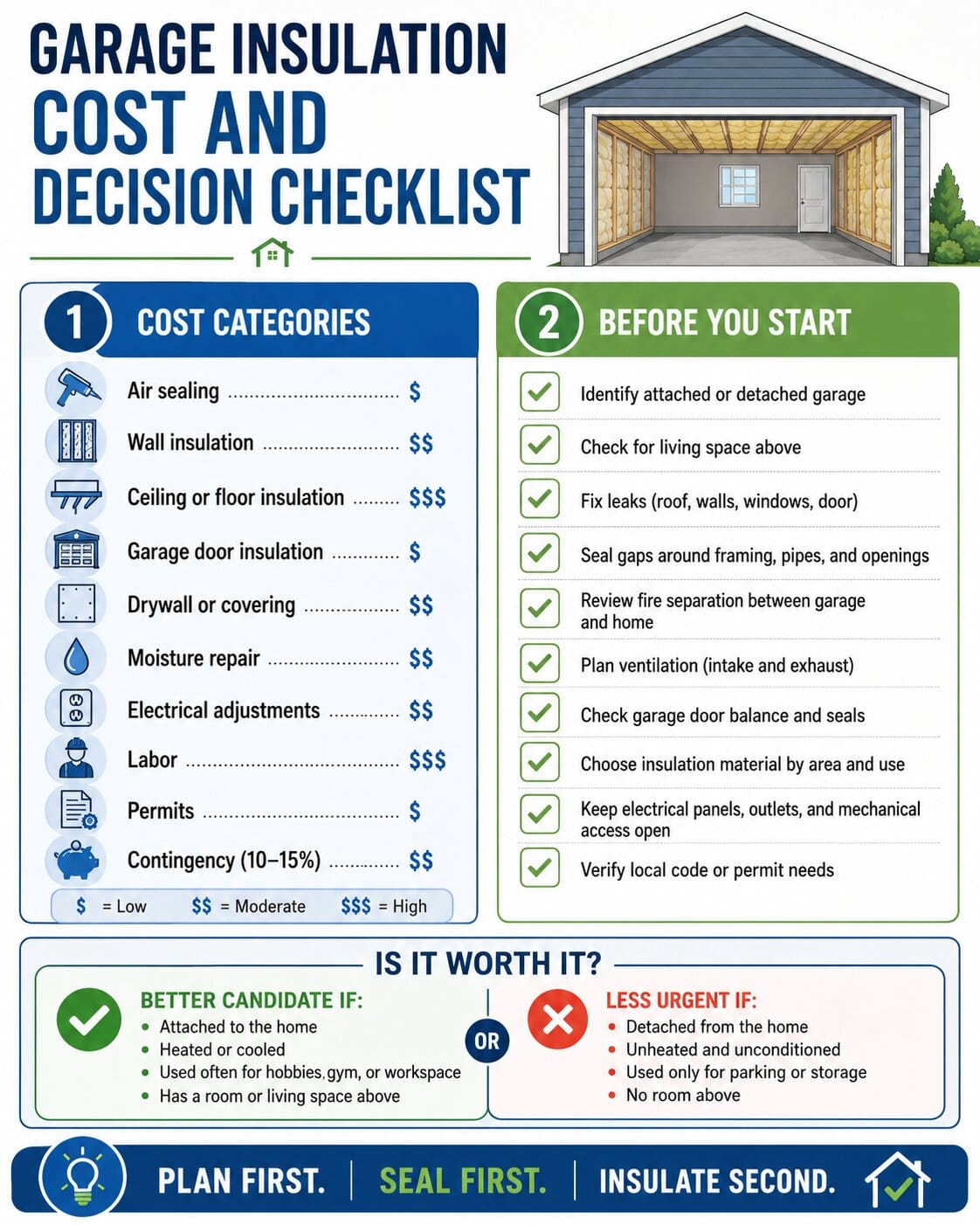

Is Insulating a Garage Worth It?

The answer depends on the garage.

Insulation Is Usually Worth Considering When:

• The garage is attached to the house.
• There is living space above the garage.
• The garage shares walls with conditioned rooms.
• You use the garage as a workshop.
• You use the garage as a gym.
• You heat or cool the garage.
• You store temperature-sensitive items.
• The garage is very noisy.
• The garage door is leaky or poorly weatherstripped.
• The garage is part of a larger energy upgrade.

Insulation May Be Less Worth It When:

• The garage is detached and used only for parking.
• The garage is never heated or cooled.
• The garage is damp and moisture problems are not fixed.
• The garage door is opened frequently for long periods.
• The budget is limited and shared-wall air sealing is a higher priority.
• Local code or fire-separation issues are not yet addressed.

Decision Table: Should You Insulate Your Garage?

Pros of Insulating a Garage

1. Better Temperature Stability

Insulation can help reduce extreme temperature swings. In cold climates, it slows heat loss. In hot climates, it slows heat gain.

This is especially useful when the garage shares walls or ceilings with living space.

2. More Comfortable Work Space

If you use the garage as a workshop, gym, craft room, or hobby area, insulation can make the space more usable. It works best when combined with air sealing, weatherstripping, and a safe heating or cooling system.

3. Better Comfort in Rooms Above the Garage

Bedrooms or bonus rooms above garages can feel cold in winter or hot in summer. Air sealing and insulation between the garage and the living space can improve comfort.

4. Reduced Noise

Insulation can reduce some sound transfer between the garage and the home. This can help if you use tools, open and close the garage door often, or have a workshop.

Mineral wool, dense insulation, drywall layers, and air sealing can improve sound control more than insulation alone.

5. Improved Energy Performance in Some Homes

Insulation and air sealing can help reduce energy waste when the garage affects the conditioned space. ENERGY STAR states that sealing air leaks and adding insulation can help comfort and energy efficiency, with savings depending on the project and home condition.

Avoid claims that garage insulation always saves a fixed percentage. Actual savings depend on the house, climate, garage use, and existing insulation.

6. Better Protection for Stored Items

A more stable garage temperature can help protect some stored items from extreme heat or cold. This may matter for tools, paint, certain sports gear, or hobby supplies.

However, insulation does not fully climate-control the garage. Sensitive items may still need proper storage.

7. Better Performance for a Heated or Cooled Garage

If the garage has a dedicated heater, heat pump, or cooling system, insulation helps the equipment work more efficiently.

Do not extend the home’s central HVAC into the garage without professional review. Garages have pollutant and fire-safety concerns.

8. Potential Improvement to Resale Appeal

A well-insulated, clean, and finished garage may appeal to buyers who value storage, workshops, or flexible space. This depends on the local market and quality of work.

Cons of Insulating a Garage

1. Upfront Cost

Garage insulation can cost more than expected. The total depends on size, material, labor, wall condition, ceiling height, garage door, air sealing, drywall, and local labor rates.

2. Limited Benefit if the Garage Is Unheated

If the garage is not heated or cooled, insulation can slow temperature change but will not create comfort by itself.

3. Moisture Problems Can Get Worse if Ignored

Insulation can trap moisture if leaks, condensation, vapor control, or drying paths are not handled correctly.

Do not insulate over wet framing, moldy drywall, roof leaks, slab moisture, or drainage problems.

4. Fire and Code Requirements Can Add Complexity

Some insulation materials need covering. Attached garage walls and ceilings may need code-compliant separation. Exposed foam can be a code and fire-safety issue.

5. Garage Door Balance Can Be Affected

Adding insulation to an existing garage door can increase door weight. This can affect balance, springs, and opener performance.

If the door becomes heavy, uneven, or hard to move, call a garage door technician. Do not adjust torsion springs yourself.

6. Ventilation May Be Needed

If the garage becomes tighter, pollutants, humidity, dust, and fumes can linger longer. Workshops, gyms, laundry zones, and hobby spaces may need ventilation planning.

7. Payback Is Not Always Fast

If your garage is detached, unheated, and rarely used, full insulation may not pay back quickly in energy savings.

8. Installation Quality Matters

Poor insulation installation can leave gaps, compress batts, block ventilation paths, cover electrical boxes, trap moisture, or violate code.

9. Mechanical Equipment May Need Clearance

Garages may contain water heaters, furnaces, electrical panels, gas lines, combustion appliances, or shutoff valves. Insulation and wall coverings must not block access, vents, combustion air, or service clearance.

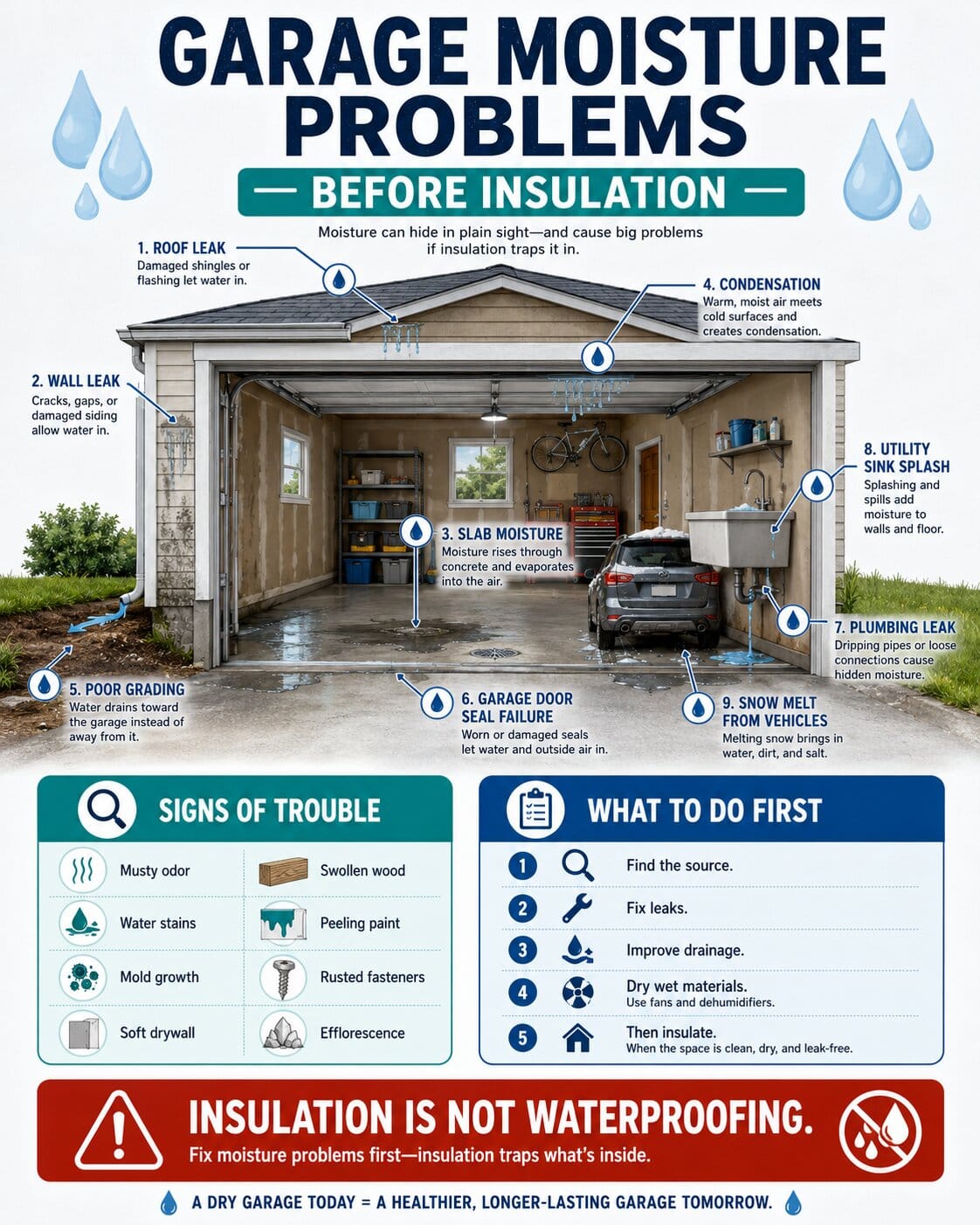

Moisture Control Before Insulation

Moisture control must come before insulation.

Look for moisture from:

• Roof leaks
• Wall leaks
• Slab moisture
• Condensation
• Poor exterior grading
• Garage door seal failure
• Snow melt from vehicles
• Plumbing leaks
• Utility sink splashes
• Laundry humidity
• Wet tools or equipment
• Foundation cracks

Signs of moisture problems include:

• Musty odor
• Water stains
• Mold growth
• Soft drywall
• Rusted fasteners
• Swollen wood
• Efflorescence on concrete
• Condensation on metal surfaces
• Peeling paint

Fix the water source first. Insulation is not waterproofing.

Vapor Control and Climate Zone

Vapor control depends on climate, wall assembly, insulation type, and whether the garage is heated or cooled.

A vapor retarder in the wrong place can trap moisture. A garage in a cold climate may need a different wall assembly than a garage in a hot-humid climate.

Before installing insulation, check:

• Local code
• Climate zone
• Whether the garage is conditioned
• Existing wall materials
• Drying potential
• Air sealing plan
• Interior finish requirements

When unsure, ask an insulation contractor, energy auditor, or local building official.

What R-Value Should You Use?

There is no single best R-value for every garage.

R-value depends on:

• Climate zone
• Wall depth
• Ceiling design
• Garage door type
• Whether the garage is heated or cooled
• Whether there is living space above
• Local energy code
• Existing insulation
• Budget
• Material choice

Common Areas and R-Value Considerations

Follow local code and product instructions rather than relying on one general R-value.

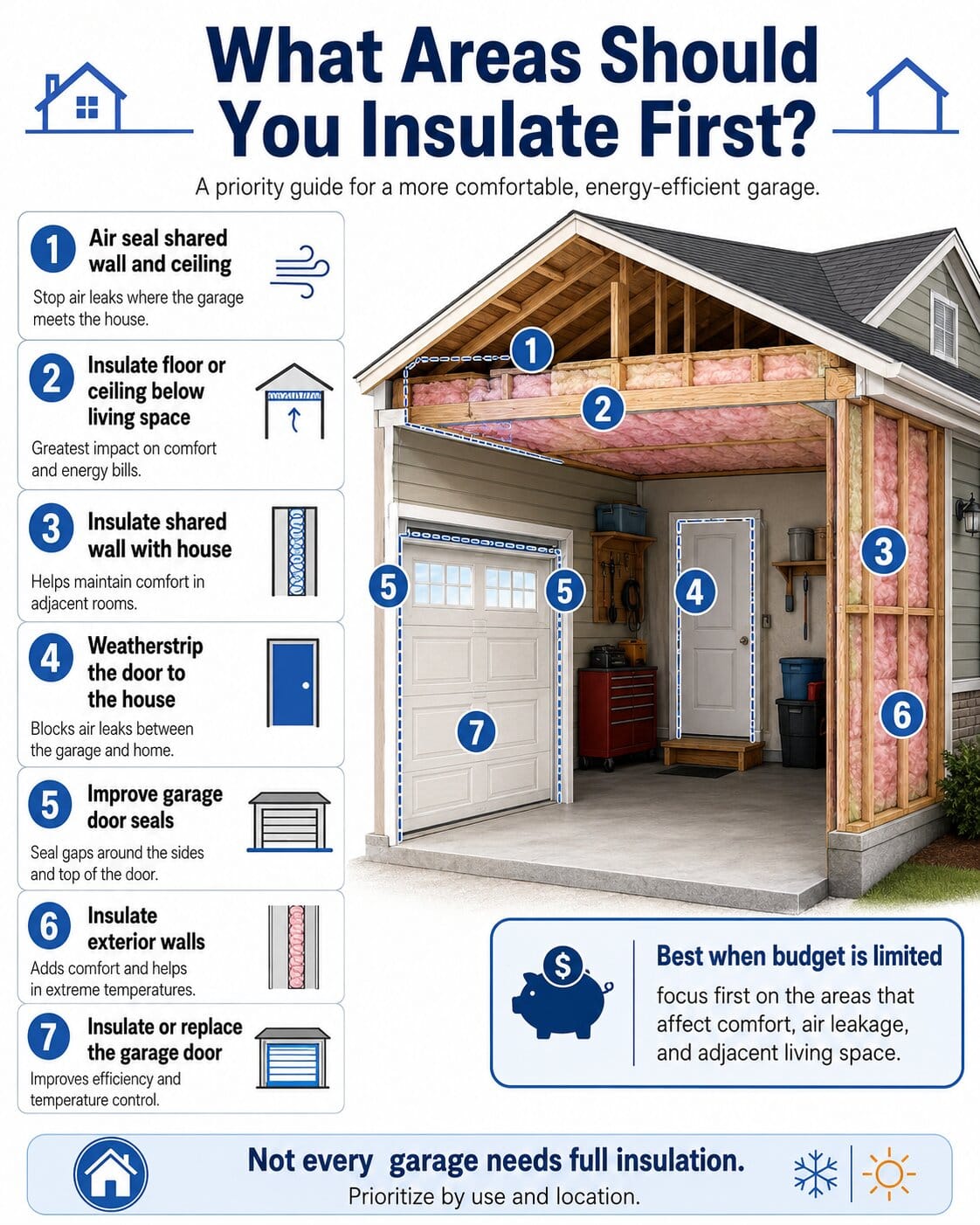

Best Areas to Insulate First

If budget is limited, prioritize the areas with the biggest effect.

1. Air Seal Shared Wall and Ceiling

Seal gaps between the garage and living space. This can help reduce air leakage and pollutant movement.

2. Insulate Floor Above Garage

If there is living space above the garage, this area is often a high priority.

3. Insulate Shared Wall With House

The shared wall affects comfort and indoor air quality. Keep required fire-separation materials intact.

4. Weatherstrip the Door to the House

A leaky door between the garage and home can allow odors and air movement. Check weatherstripping, threshold, and self-closing function if required by local code.

5. Improve Garage Door Seals

A garage door can leak a lot of air around the sides, top, and bottom. Replace damaged weatherstripping before spending heavily on door insulation.

6. Insulate Exterior Walls

This is useful when the garage is heated, cooled, or used often.

7. Insulate or Replace the Garage Door

A factory-insulated door may perform better than a heavy DIY retrofit. If adding insulation panels to an existing door, check balance and opener performance.

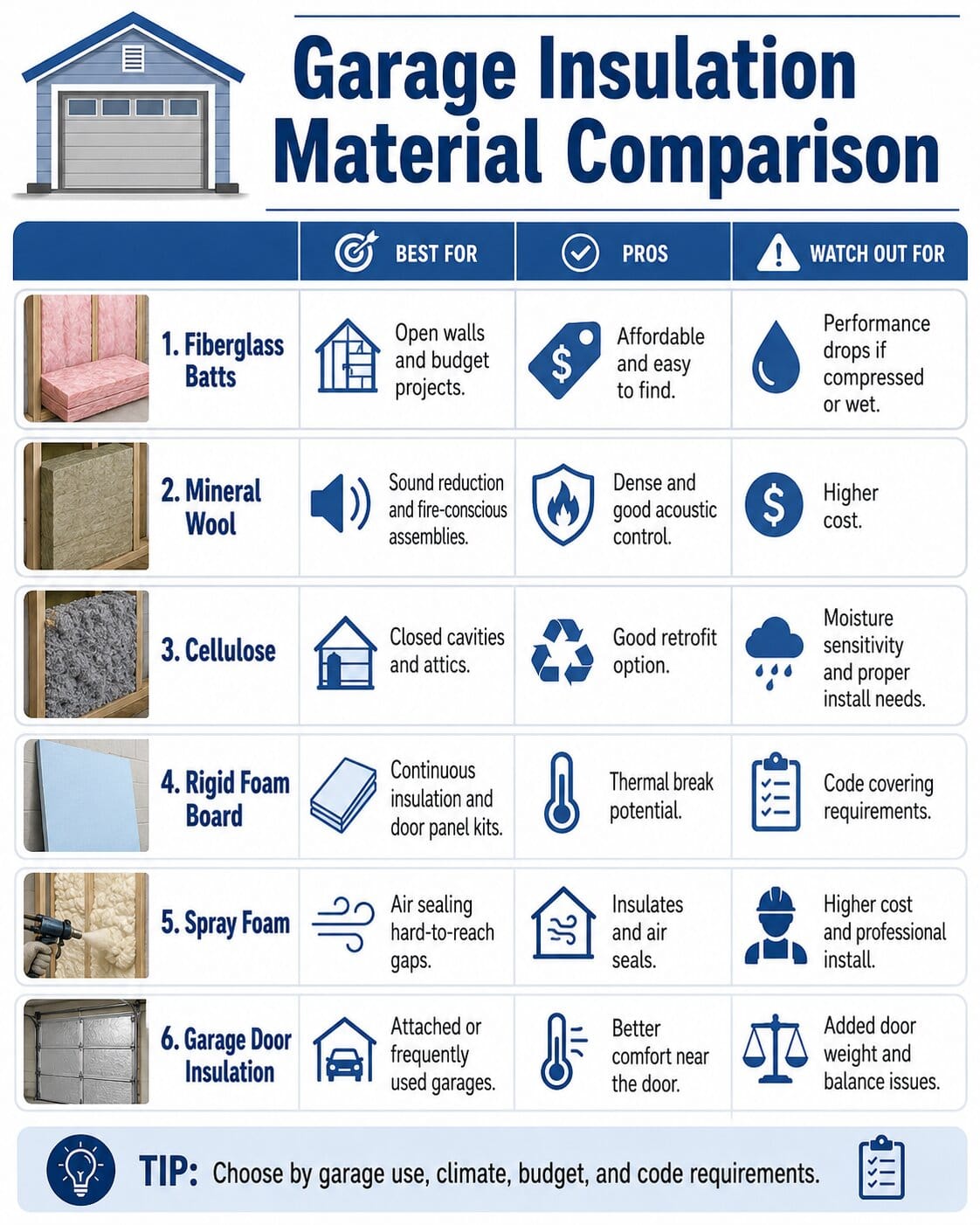

Garage Insulation Materials

Fiberglass Batts

Fiberglass batts are common and affordable. They work in open stud cavities and are easy to find.

Best for:

• Open walls
• Budget projects
• Detached garages
• Shared walls when covered correctly

Watch out for:

Fiberglass loses performance when compressed, wet, or poorly fitted. It also needs an air barrier and appropriate covering.

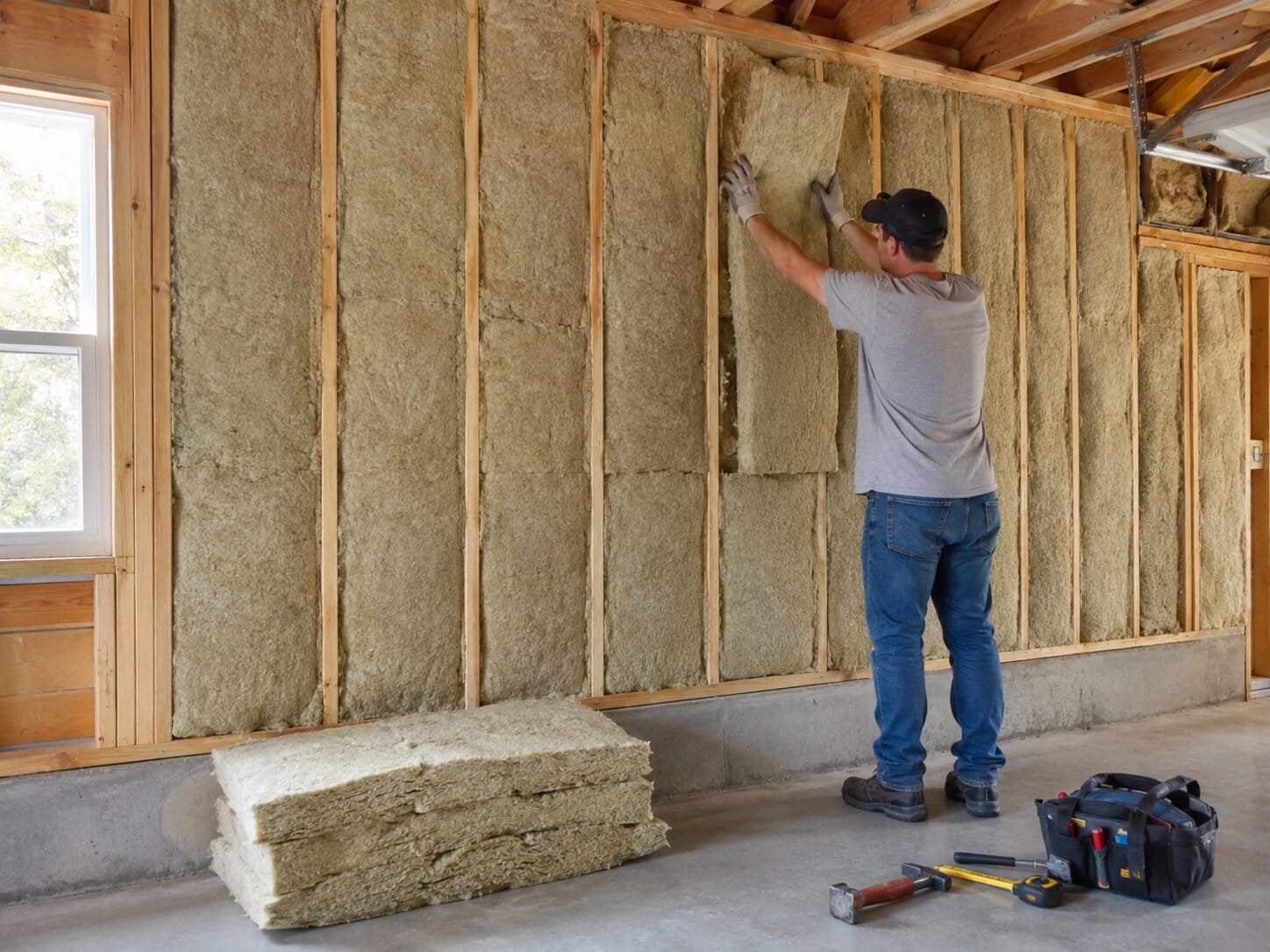

Mineral Wool

Mineral wool is denser than fiberglass and has good sound-control properties. It also handles heat better than many insulation types.

Best for:

• Sound reduction
• Fire-conscious assemblies
• Workshop walls
• Garage walls needing durability

Watch out for:

It costs more than fiberglass and still needs proper air sealing and wall covering.

Cellulose

Cellulose can be blown into wall or ceiling cavities. It may work well in retrofit projects.

Best for:

• Existing closed cavities
• Attics above garages
• Dense-pack retrofit work

Watch out for:

It must stay dry and should be installed by someone who understands density, moisture, and air sealing.

Rigid Foam Board

Rigid foam can provide continuous insulation and reduce thermal bridging. It is useful in some garage wall and door projects.

Best for:

• Continuous insulation
• Garage door panel kits
• Thin insulation needs
• Thermal break strategies

Watch out for:

Foam plastic insulation often needs a thermal barrier or approved covering. Check code and manufacturer instructions.

Spray Foam

Spray foam can air seal and insulate at the same time when installed correctly.

Best for:

• Rim joists
• Hard-to-seal gaps
• High-performance assemblies
• Professional retrofit work

Watch out for:

Spray foam is expensive and usually requires professional installation. It may need thermal or ignition barriers under code.

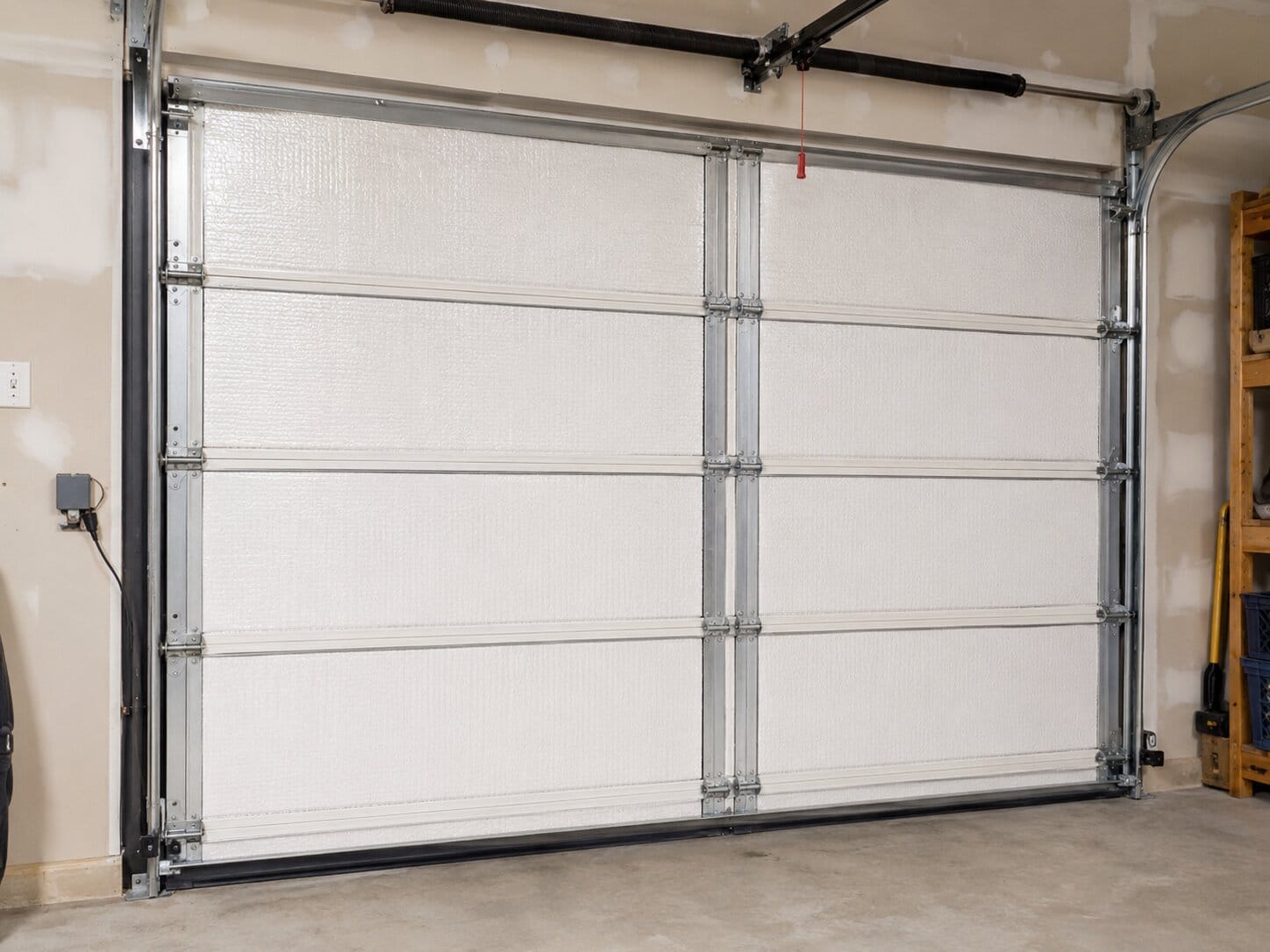

Garage Door Insulation

Garage door insulation can help with comfort, especially when the garage is attached or used often.

Options include:

• Factory-insulated garage door
• Rigid foam panel kits
• Reflective kits
• Batt-style kits
• Replacement weatherstripping

Watch out for:

Added weight can affect door balance. If the door does not stay balanced or opener struggles, call a garage door technician. Do not adjust springs yourself.

Cost of Insulating a Garage

Garage insulation cost varies widely. A simple DIY wall insulation project costs much less than professional spray foam, ceiling insulation, drywall finishing, or garage door replacement.

Cost depends on:

• Garage size
• Attached or detached design
• Wall and ceiling condition
• Material type
• Labor cost
• Drywall removal or repair
• Ceiling height
• Garage door condition
• Weatherstripping
• Air sealing work
• Fire-rated covering
• Electrical changes
• Mechanical equipment clearance
• Permit requirements
• Moisture repair
• Finish level

Cost Categories to Consider

Do not compare only insulation material prices. The full project may include air sealing, covering, code work, and finish repairs.

Ventilation for Workshops, Gyms, and Hobby Garages

A tighter insulated garage may need better ventilation, especially if you use the space for:

• Woodworking
• Painting
• Car repair
• Exercise
• Laundry
• 3D printing
• Welding
• Cleaning supplies
• Solvents
• Hobby chemicals
• Battery charging

Ventilation may include exhaust fans, operable windows, dehumidification, dust collection, or dedicated equipment. Avoid connecting garage air directly to the home’s HVAC return.

Mechanical and Combustion Safety

Before insulating, check whether your garage contains:

• Gas water heater
• Furnace
• Boiler
• Electrical panel
• EV charger
• Gas shutoff
• Water shutoff
• Dryer vent
• Floor drain
• Cleanout
• Combustion air openings

Do not block combustion air, vents, access panels, drain pans, shutoff valves, or service clearance. Follow equipment manuals and local code. Hire a licensed contractor if gas appliances or major mechanical systems are involved.

Checklist Before Insulating a Garage

Garage Type

• Is the garage attached or detached?
• Is there living space above it?
• Does it share walls with the home?
• Is it heated, cooled, or unconditioned?
• Will it be used as a workshop, gym, or storage area?

Safety and Code

• Check dwelling-garage separation requirements.
• Keep required gypsum board or equivalent materials intact.
• Check whether foam insulation needs a thermal barrier.
• Confirm whether permits are required.
• Keep electrical and mechanical access open.

Air Sealing

• Seal shared wall gaps.
• Seal ceiling penetrations.
• Seal pipe and wiring holes.
• Seal rim joists.
• Weatherstrip the door to the house.
• Check garage door seals.

Moisture

• Check roof and wall leaks.
• Check slab moisture.
• Repair garage door seal failures.
• Fix drainage or grading problems.
• Dry all wet framing before insulating.

Insulation Plan

• Choose material by area and use.
• Match R-value to local code and climate.
• Avoid compressing batts.
• Plan vapor control carefully.
• Cover insulation where required.

Garage Door

• Check weatherstripping first.
• Consider factory-insulated door if replacing.
• Avoid heavy DIY additions without checking balance.
• Call a technician if the door feels heavy or uneven.

Ventilation

• Plan for fumes, humidity, and dust.
• Do not run vehicles in a closed garage.
• Store chemicals in sealed containers.
• Consider ventilation for workshop or gym use.

Common Mistakes to Avoid

Mistake 1: Insulating Before Air Sealing

Air leaks reduce insulation performance and may allow garage pollutants to move into the home.

Mistake 2: Expecting Insulation to Heat the Garage

Insulation slows heat transfer. It does not create heat.

Mistake 3: Ignoring Fire Separation

Attached garages may need code-compliant separation from living space. Do not remove or cover required materials without checking code.

Mistake 4: Leaving Foam Insulation Exposed

Foam plastic often needs an approved thermal barrier or other code-approved covering.

Mistake 5: Insulating Over Moisture Problems

Wet walls, leaks, or condensation can cause mold and damage.

Mistake 6: Adding Too Much Weight to a Garage Door

Extra weight can affect balance, springs, and opener performance.

Mistake 7: Blocking Mechanical Equipment

Do not cover water heaters, furnaces, vents, shutoffs, cleanouts, or electrical panels.

Mistake 8: Using One R-Value for Everything

Walls, ceilings, doors, and shared assemblies have different needs.

Mistake 9: Forgetting Ventilation

A tighter garage can trap fumes, humidity, and dust.

Mistake 10: Treating a Garage Like Living Space Without Code Review

Converting a garage into living space is a separate project with additional code, permit, egress, HVAC, electrical, fire, and occupancy requirements.

FAQ About Insulating a Garage

Is insulating a garage worth it?

It can be worth it if the garage is attached, has living space above it, is heated or cooled, or is used often as a workshop or gym. It may be less valuable for a detached, unheated garage used only for parking.

Does insulation make a garage warmer?

Insulation helps slow heat loss, but it does not create heat. An unheated garage may feel more stable, but it will not become warm without a heat source.

Should I insulate an attached garage?

Often, yes, especially the shared wall, ceiling below living space, and air leakage paths. Air sealing and fire separation are especially important.

Should I insulate a detached garage?

It depends on use. If it is only for parking, insulation may not be necessary. If it is a workshop, gym, or heated space, insulation can be useful.

Should I insulate the garage ceiling?

Yes, if there is living space above or if the garage is conditioned. The ceiling or floor assembly should have a continuous air and thermal barrier.

Should I insulate the garage door?

It can help, but weatherstripping and door seals are also important. If adding insulation makes the door heavy or unbalanced, call a technician.

What R-value should I use for garage insulation?

It depends on climate zone, area of the garage, local code, and whether the garage is conditioned. Follow local energy code or ask an insulation professional.

Do I need drywall over garage insulation?

Often yes, especially in attached garages or where foam plastic insulation is used. Fire separation and thermal barrier rules may apply.

Can insulation cause moisture problems?

Yes, if installed over leaks, wet materials, or poorly designed vapor control. Fix moisture problems first.

Should I insulate an unheated garage?

Only if you want slower temperature swings, better storage conditions, or a thermal buffer. For true comfort, you also need a heat source or cooling system.

What is the best insulation for a garage?

There is no single best choice. Fiberglass, mineral wool, cellulose, rigid foam, spray foam, and garage door insulation each fit different situations.

Is spray foam good for garages?

Spray foam can work well for air sealing and insulation, but it is expensive and may need an approved thermal barrier. Professional installation is usually best.

Can I insulate a garage myself?

Some homeowners can install batt insulation or garage door kits. More complex work involving spray foam, electrical access, fire separation, mechanical equipment, or living space above the garage may require professionals.

Should I seal garage air leaks before insulating?

Yes. Air sealing should usually come first, especially in attached garages.

Can I use my garage as a living room after insulating it?

Not automatically. Converting a garage into habitable space requires permits, code compliance, egress, HVAC, electrical, insulation, fire safety, and occupancy approval.

Conclusion

Insulating a garage can be a smart upgrade, but only when it matches the garage type, climate, safety needs, and how the space is used.

For attached garages, the priority is not just comfort. Air sealing, indoor air quality, and fire separation matter. For garages with living space above, the ceiling or floor assembly should get special attention. For detached garages, insulation makes the most sense when the space is heated, cooled, or used often.

The safest approach is to start with air sealing, moisture control, and code review. Then choose insulation materials based on the wall, ceiling, door, climate, and use of the garage.

A good insulation plan can make a garage more comfortable and useful. A poor plan can trap moisture, hide fire-safety issues, add unnecessary cost, or create code problems.

Plan first. Seal first. Insulate second.

Sources:

• U.S. Department of Energy, “Insulate and Air Seal Floors Over Unconditioned Garages”
  Used for the guidance that continuous air and thermal barriers between an unconditioned garage and conditioned space above can improve comfort, energy performance, and indoor air quality. Also used for garage pollutant context, including carbon monoxide fromcar exhaust. (The Department of Energy’s Energy.gov)
• Building America Solution Center, “Air Sealing Attached Garage”
  Used for the explanation that air-sealed attached garages help block carbon monoxide and other contaminants from leaking into the home. (Building America Solution Center)
• Building America Solution Center, “Air Sealing and Insulating Garage Walls”
  Used for attached garage air sealing and insulation code-compliance context, especially for preventing infiltration of carbon monoxide and contaminants into living space. (Building America Solution Center)
• International Code Council, “IRC R302.6 Dwelling-Garage Separation”
  Used for dwelling-garage separation requirements, including gypsum board or equivalent material on the garage side and Type X gypsum board where garage is beneath habitable rooms. (ICC Digital Codes)
• International Code Council, “IRC R316.4 Thermal Barrier”
  Used for foam plastic insulation thermal barrier context, including the requirement that foam plastic generally be separated from the building interior by an approved thermal barrier such as 1/2-inch gypsum wallboard unless an exception applies. (ICC Digital Codes)
• ENERGY STAR, “Seal and Insulate”
  Used for general air sealing and insulation benefits, including comfort and energy-efficiency context. (ENERGY STAR)
