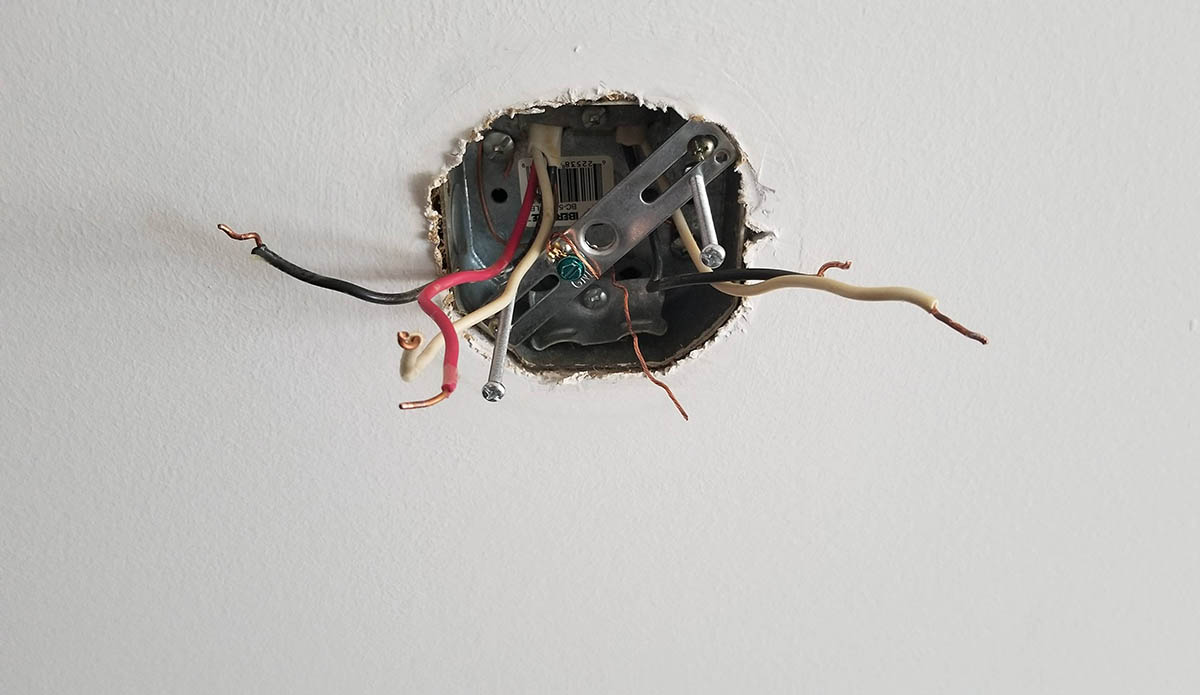

How to Wire a Light Fixture With Red, Black, and White Wires

How to Wire a Light Fixture With Red, Black, and White Wires
Images /

How to Wire a Light Fixture: A Comprehensive Guide

Wiring a light fixture may seem like a daunting task, especially if you’re not familiar with the basics of electrical wiring.

However, with the right knowledge and precautions, it can be a manageable DIY project.

In this comprehensive guide, we will walk you through the process of wiring a light fixture with red, black, and white wires.

We’ll explore the meaning and proper use of each wire color, discuss the necessary tools and materials, provide step-by-step instructions, and offer tips to ensure a safe and successful installation.

Understanding Electrical Wire Colors

Black Wire

The black wire is commonly referred to as the “hot” or “live” wire. It carries the current from the breaker panel to the destination, supplying power to light fixtures, appliances, outlets, and switches.

In some cases, black wires also serve as “switch legs,” connecting wall outlets and switches. It’s crucial to exercise caution when working with black wires to prevent electrocution.

Always follow proper safety precautions, such as shutting down the main electrical panel or the circuit breaker you’re working on.

White and Gray Wires

White or gray wires are neutral wires. After the live current leaves the electrical panel, it passes through the circuit’s hot wire, such as a light bulb, and returns to the service panel via the neutral white wire.

These wires can also function as hot wires, but they must be connected only to other white or gray wires.

It’s important to remember that neutral wires still carry a live current and should be handled with care.

Red and Orange Wires

Red wires, like black wires, carry a live current and can function as switch legs. In the context of wiring light fixtures, the purpose of a red wire varies.

Ceiling fans, for example, often have a hot red wire to operate the light, while the hot black wire powers the fan motor.

Orange wires can be used as alternatives to red wires in certain situations.

Green, Green with a Yellow Stripe, or Bare Copper Wires

Green wires are ground wires that provide a fail-safe path for excess electricity during a short circuit.

They are connected to a ground metal rod buried in the soil or a concrete slab. Green wires should only be used for grounding and should never be repurposed.

Similarly, green with yellow stripe wires and bare copper wires can be used as alternatives to green wires.

Blue and Yellow Wires

Blue wires function as “travel wires” in three- or four-way switches, providing alternative pathways for completing the electrical circuit.

Yellow wires, on the other hand, serve as switch legs in ceiling fans, structural lights, and single circuit light switches and outlets.

While these wire colors are less commonly used in residential settings, they are frequently found in more complex commercial circuits.

Materials for Wiring a Light Fixture

Before we delve into the step-by-step process of wiring a light fixture, let’s take a look at the essential tools and materials you’ll need for the job.

These items will ensure that you have everything necessary to complete the installation safely and effectively.

  1. Screwdrivers (Straight and Phillips): These tools will be used for loosening and tightening screws throughout the installation process.
  2. Pair of Needle-nose Pliers: Needle-nose pliers are useful for manipulating and securing electrical wires.
  3. Circuit Tester: A circuit tester helps determine if a circuit is “hot” and provides information about voltage and electrical polarity.
  4. Electrical Probe (Optional): An electrical probe allows you to safely explore electrical outlets, panels, and wiring, alerting you to the presence of live wires.
  5. Flashlight or Headlamp: Proper lighting is essential for working in dimly lit areas, ensuring accuracy and safety.
  6. Stepladder: A stepladder provides access to high areas where light fixtures are typically installed.

Tips When Wiring a Light Fixture

Before we begin the step-by-step guide, let’s go over some important tips to keep in mind when wiring a light fixture.

These tips will help ensure a smooth and safe installation process.

  1. Shut off the Power Supply: Before starting any electrical work, shut off the power supply at the electrical panel to prevent the risk of electrocution. Simply turning off the light switch is not enough, as live current may still be present in the wires.
  2. Label the Circuit’s Switch You’re Working On: To avoid confusion and potential accidents, label the circuit’s switch that controls the light fixture you’re working on. This serves as a clear warning to others not to touch or turn on the switch during the installation process.
  3. Use a Circuit Tester: If your electrical panel is not properly labeled, use a circuit tester or voltage detector to determine if the area you’re working on is “hot” or live. Alternatively, you can ask someone to turn on the light fixture’s switch while you cycle through the circuit breakers until the power is cut off.

Step-by-Step Guide on How to Wire Your New Light Fixture

How to Wire a Light Fixture With Red, Black, and White Wires
Images /

Step 1: Loosen the Screws of the Switch’s Cover

Begin by loosening the screws that secure the cover of the switch that operates the light fixture you’re replacing. This will provide access to the wiring behind the switch.

Step 2: Remove the Cover

Carefully remove the cover, taking note of the wire colors connected to each side of the switch.

If there are white wires on one side and black wires on the other side of the switch, it indicates that one pair of black and white wires connects to the corresponding wires running to the switch’s electrical panel, while the other pair connects to the light fixture.

Step 3: Take Out Your Old Light Fixture

If there is any twisting or crimping of the wires, cut the wires on the back of the connection.

Be sure not to cut them too short, leaving at least 3/4″ of sheathing for making new connections.

If wire nuts are present, loosen them to straighten out the wires. You may need to cut the wires to establish clean connections for the new light fixture.

Step 4: Wire Your New Light Fixture

Refer to the pictures you took of the old light fixture’s wiring pattern. Twist wires of the same color together and secure them with wire nuts.

The specific steps for wiring a light fixture with red, black, and white wires are as follows:

  • Attach the white wire from the new light fixture to the white wire in the junction box.
  • Connect the black wire from the new light fixture to the black wire in the junction box. If there is a red wire present, consult the installation instructions to determine if it should be connected instead.
  • Ensure proper grounding by connecting the ground wire from the fixture to the ground wire in the junction box.


By following this comprehensive guide, you now have the knowledge and confidence to wire a light fixture with red, black, and white wires.

Remember to exercise caution, shut off the power supply, and use the appropriate tools and materials for a safe and successful installation.

If you encounter more complex wiring situations or lack confidence in your abilities, it’s always advisable to seek the assistance of a licensed electrician.

With proper care and attention, you can illuminate your space with a beautifully installed light fixture.
